1、产品描述 Product description
测试桩用于阴极保护参数的检测,用来测量阴极保护系统的主要分布点的阴极保护电位、电流、接地电阻,绝缘装置的电绝缘性能,监测阳极运行状态等重要参数的测量装置。本装置装有6个接线柱,可以根据设计单位的具体要求方便地组成电位、电流、牺牲阳极、绝缘性能测试桩或交叉管道测试桩等。测试桩由桩体、测试接线板、测试导线和铭牌等几部分组成。
The test pile is used to detect the parameters of cathodic protection, and is used to measure the cathodic protection potential, current, grounding resistance of the main distribution points of the cathodic protection system, the electrical insulation performance of the insulation device, and the measurement device for monitoring the operation state of the anode and other important parameters. The device is equipped with 6 terminals, which can be easily composed of potential, current, sacrific anode, insulation performance test pile or cross pipe test pile according to the specific requirements of the design unit. The test pile is composed of pile body, test wiring board, test wire and nameplate.

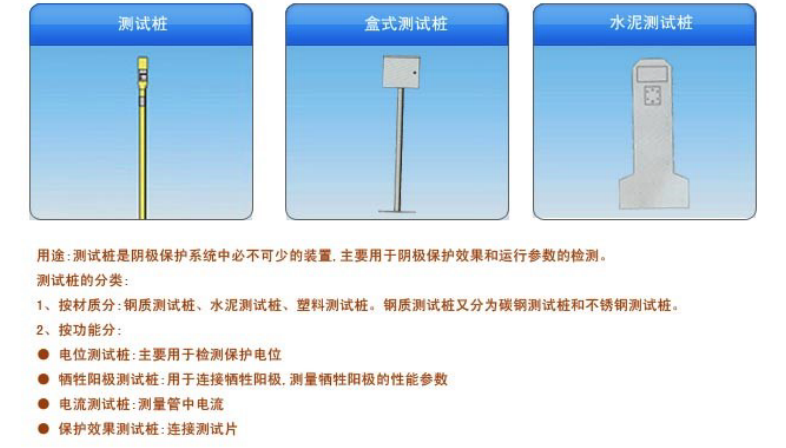

2、测试桩的分类Classification of test piles
按材质分:钢质测试桩、水泥测试桩、塑料测试桩、玻璃钢测试桩。钢质测试桩又分为碳钢测试桩和不锈钢测试桩。
According to the material: steel test pile, cement test pile, plastic test pile, FRP test pile. Steel test pile is divided into carbon steel test pile and stainless steel test pile.
3、常用测试桩型号规格Common test pile models and specifications
4、参考图片Reference pictures
